Specialized HDS SUB, INTEGRATED STEERER STOP ASSEMBLY, W/ CASTLE BLOCK COLLAR & COMPRESSION RING (NO BEARINGS)

  • BPC Product ID: BPCK139368
  • UPC ID: 196625232206
  • Manufacturer ID: S252500003


Price: $46.00


Description

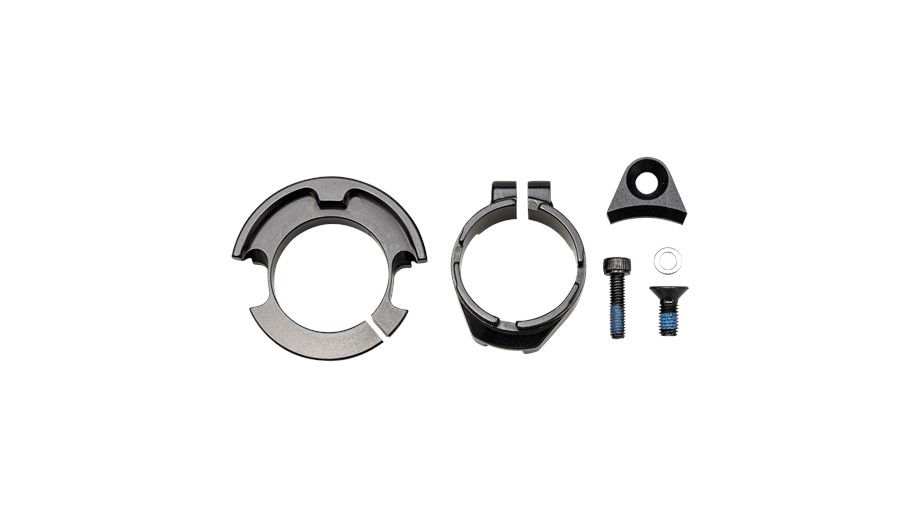

XC integrated steerer stop headset assembly consisting of the steerer stop clamp, upper compression ring, and steerer stop block. Updated steerer stop collar that allows collar to contact headset spacers or stem directly for improved headset preload adjustment.
  • Upper compression ring with internal cable routing ports for custom 49.5mm OD bearing (1 pcs).
  • Upper compression ring with internal cable routing ports for custom 49.5mm OD bearing (1 pcs).
  • Fork steerer tube clamp assembly with M4 x 0.7P x16mm pinch bolt (1 pcs). Keys into the compression ring to ensure both parts move together.
  • Steerer stop block with M5 x 0.8P x 12mm mounting bolt. Bolts to the back of the headtube.
  • Updated collar should only be used with updated top covers S252500002 (w/ ICR ports) or S252500001 (no ICR ports).
