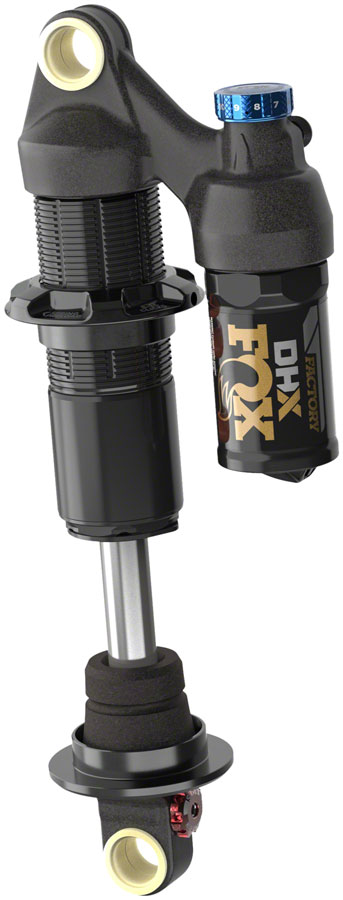

FOX DHX Factory Rear Shock - Metric, 230 x 60 mm, 2-Position Lever, Hard Chromoly Damper Shaft

  • BPC Product ID: BPC522712
  • UPC ID: 821973492377
  • Manufacturer ID: 960-01-024


Only available for shipping to United States locations.

Price: $569.00


Description

Answering the prayers of riders seeking the ultimate in plush suspension, the DHX brings coil-sprung, magic-carpet, trail smoothing performance in a wide range of configurations to the trails and beyond.
  • New chassis and damper
  • High-flow main piston, Numbered Tool-free 12 position single-turn LSC (Low Speed Compression) adjuster
  • Independent firm mode circuit – 2 position adjuster, Optimized reservoir lengths per shock size
  • Hydraulic top out feature, Reduced damper noise, MCU bottom out bumper
  • Single-turn rebound adjuster with a variety of access modes (Tool-free, 3mm hex (direct access), 2mm hex or similar (side access)
  • Spring preload collar with detents and max / min number of clicks and direction arrow
  • Coil spring sold separately

Additional Information

Stroke (mm) 60
keyword search FOX Model Year 25 , FOX MY25
Eyelet Diameter (mm) 12.7
Positive Spring Coil
External Adjustments Coil Preload , Low Speed Compression Damping , Rebound Damping
Eye to eye length (mm) 230
Lockout Switch Shock Mounted Switch
Metric Yes
