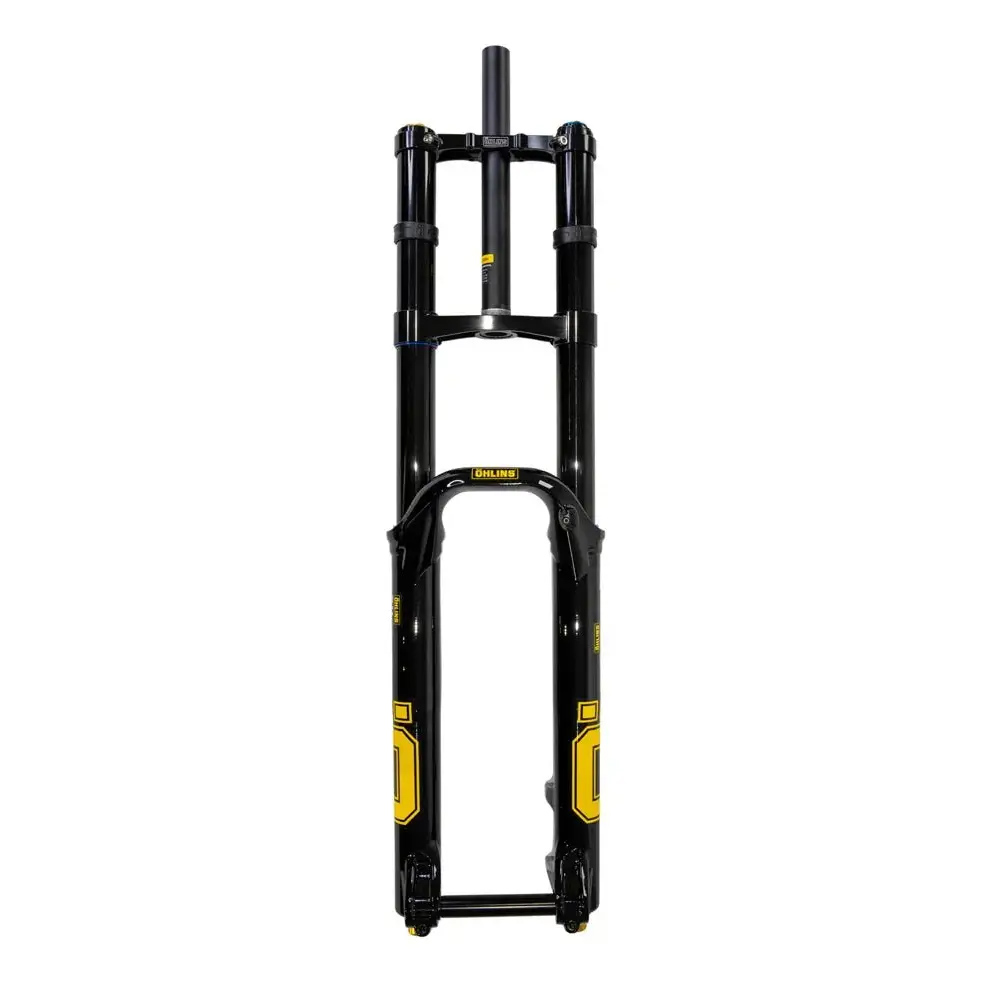

Ohlins DH38, TTX18 M.2 Coil Fork, 200mm, Black

Ohlins DH38, TTX18 M.2 Coil Fork, 200mm, Black

  • BPC Product ID: BPC214319
  • UPC ID:
  • Manufacturer ID: FDMTB 3820 2520


Price: $1,675.00


Description

Ohlins DH M.2 Race Fork

- TTX18 damper's 18mm piston provides optimal small bump sensitivity
- 15 clicks of low speed compression and low speed rebound
- 5 clicks of high speed compression
- Twin piston, three chamber air spring system, isolated from the upper tubes to reduced head build up
- Total Tune Spring Curve System (TTSC) allowing total air spring tuning from the initial movement through to the bottom out
- 74mm post mount disc brake mount
- 20x110mm DH Boost thru-axle
- Max tire size: 29x2.8" or 27.5x3.0"
- E-Bike approved
- (CROWN NOT INCLUDED)

Item Specifications

  • Model|Wheel Size|Steerer (Stem/Race)|Offset|Travel|Spring Type|Brake Mount|Dropout|Weight|Color: DH Coil M.2|27.5"/29"|Steerer and Crown Sold Separately|46-58mm|200mm|Coil|Disc Only (PM-200)|20x110mm Boost|2715g (without Crowns and Steer Tube)|Black
