Description

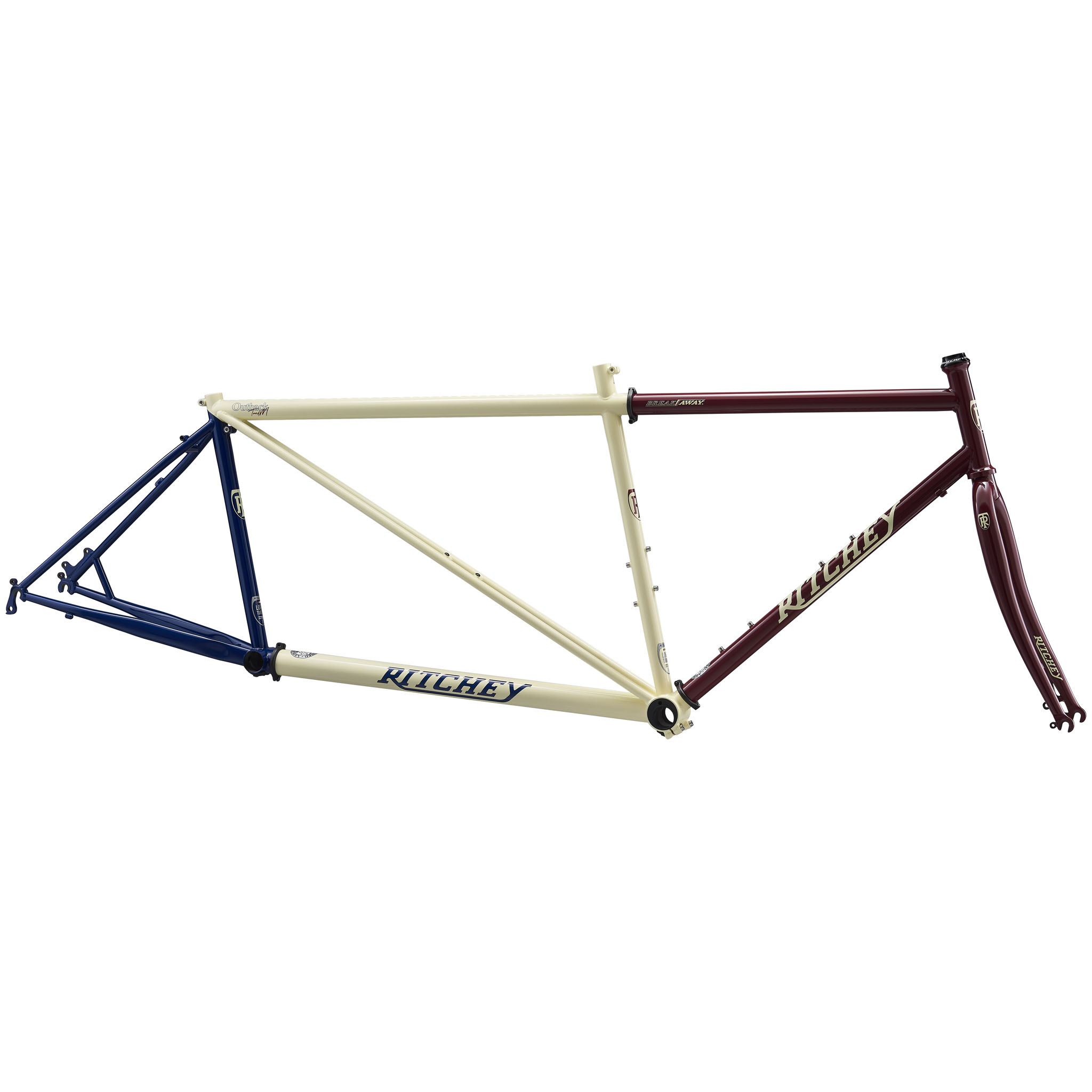

Ritchey Break-Away TandM Tandem Frameset
- Road-oriented tandem frame- Fits up to 43mm tires, making it capable of handling gravel roads
- Triple-butted Ritchey Logic frame and fork tubing TIG welded
- Fender mounts and the ability to carry five bottle cages
- Multi-purpose mounts on the fork
- Designed for standard tandem gearing - stoker crank: 52/39/30T
- IS51 brake mounts / 203 max rotor size
-10x145mm rear and 9x100mm front dropouts. Use RC5728 as ideal wheelset
- Includes two Break-Away travel cases with padding
- Hinge clamps, rear brake cable connector and derailleur cable connectors also included
- Frame weight: 5.02kg (3 sections of frame assembled in one piece)
- Fork weight: 1700g (uncut steerer)
Item Specifications
- size|top tube (effective, c-c)|chainstay|head angle|seat angle|headset|bottom bracket|seatpost|front derail|BB drop|stand over|dropout|color: large|590mm|435mm|71.5 deg|73.5 deg|IS42/28.6|IS42/30|68mm|27.2mm|28.6mm|70mm|822mm Captain/756mm Stoker|10x145mm|merlot, creme, indigo
