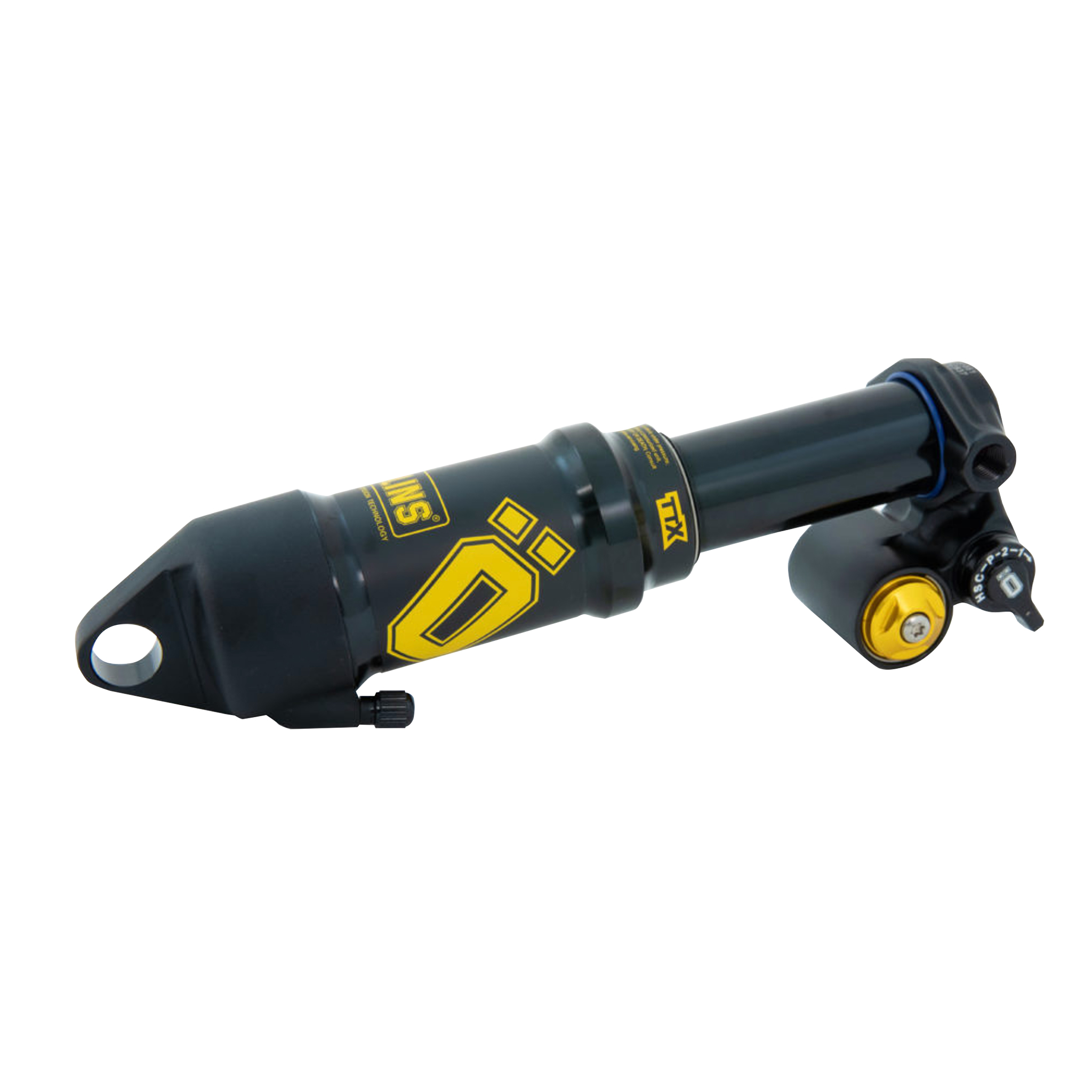

Ohlins TTX1Air Trunnion Shock, 55 x 185mm

Ohlins TTX1Air Trunnion Shock, 55 x 185mm

  • BPC Product ID: BPC192710
  • UPC ID:
  • Manufacturer ID: MTBM 1953


Price: $725.00


Description

Ohlins TTX1Air Shock, Trunnion

- TTX1 refers to a single air chamber for less air volume. Offers a more progressive spring rate
- Trunnion mount: the linkage bolts directly to the sides of the cylinder head
- TTX Twin tube design for consistent damping performance on all types of terrain
- Extra bushing overlap for improved side load management
- Specific wiper seal and air sleeve lubrication reduce friction
- External rebound, low-speed, and high-speed compression adjustment
- Climb mode to reduce suspension movements during climbs
- Includes (2) air spring volume spacers to reduce travel -2.5mm or -5mm
- Mounting hardware sold separately (spherical bearings reduce friction on the shock during side loads for improved small bump sensitivity, optional on widths up to 22mm)

Item Specifications

  • Model|Stroke|Eye-Eye: TTX1 Air Trunnion|55mm|185mm
