Wheels Manufacturing T47 Inboard Bottom Bracket for 24mm Spindles with ABEC-3 Bearings

Wheels Manufacturing T47 Inboard Bottom Bracket for 24mm Spindles with ABEC-3 Bearings

  • BPC Product ID: BPC488570
  • UPC ID: 811079025975
  • Manufacturer ID: T47-BB-SHIM-BB


Price: $138.99


Description

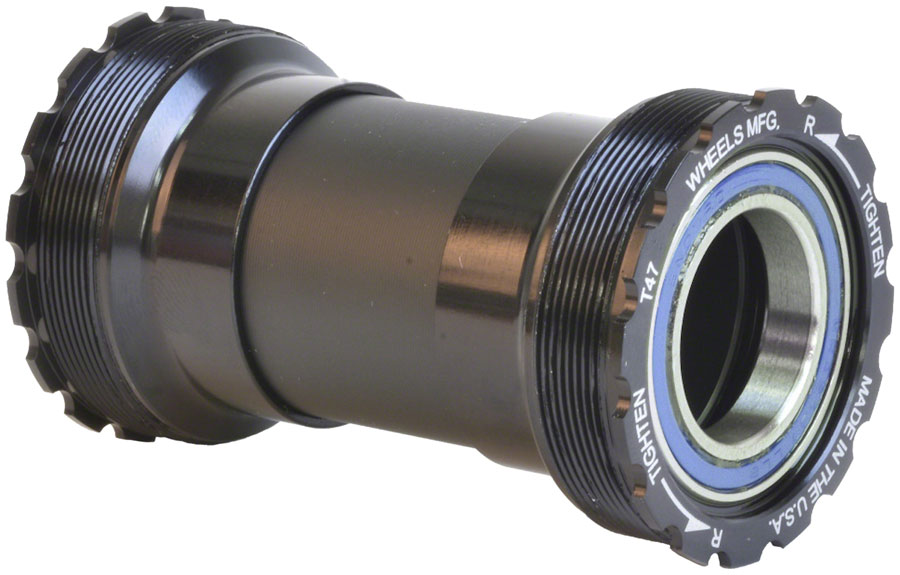

T47 Inboard threaded bottom brackets are made from machined aluminum, and thread together directly into T47 frames. Cups have internal bearings for use in BB shell widths from 68mm to 132mm.
  • High quality Enduro bearings can be easily serviced or replaced
  • Similar to standard BSA threaded cups; the drive side cup is left-hand thread and the non-drive side cup is right-hand thread
  • Compatible with 24.00mm spindle diameter cranksets, like Shimano HollowTech II
  • Fits 68mm - 132mm shell widths

Additional Information

Spindle Interface Type Shimano Hollowtech II
BB Shell Width (mm) 68 , 70 , 73 , 76 , 79 , 83 , 85 , 86 , 90 , 92 , 95 , 100 , 104.5 , 107 , 121 , 132
Bottom Bracket Shell I.D. 47
Defined Color Black
BB/Frame Interface T47
